ViewSonic VA2223-H 22" Full HD MainStream Monitor
More Information on Product
VA2223-H

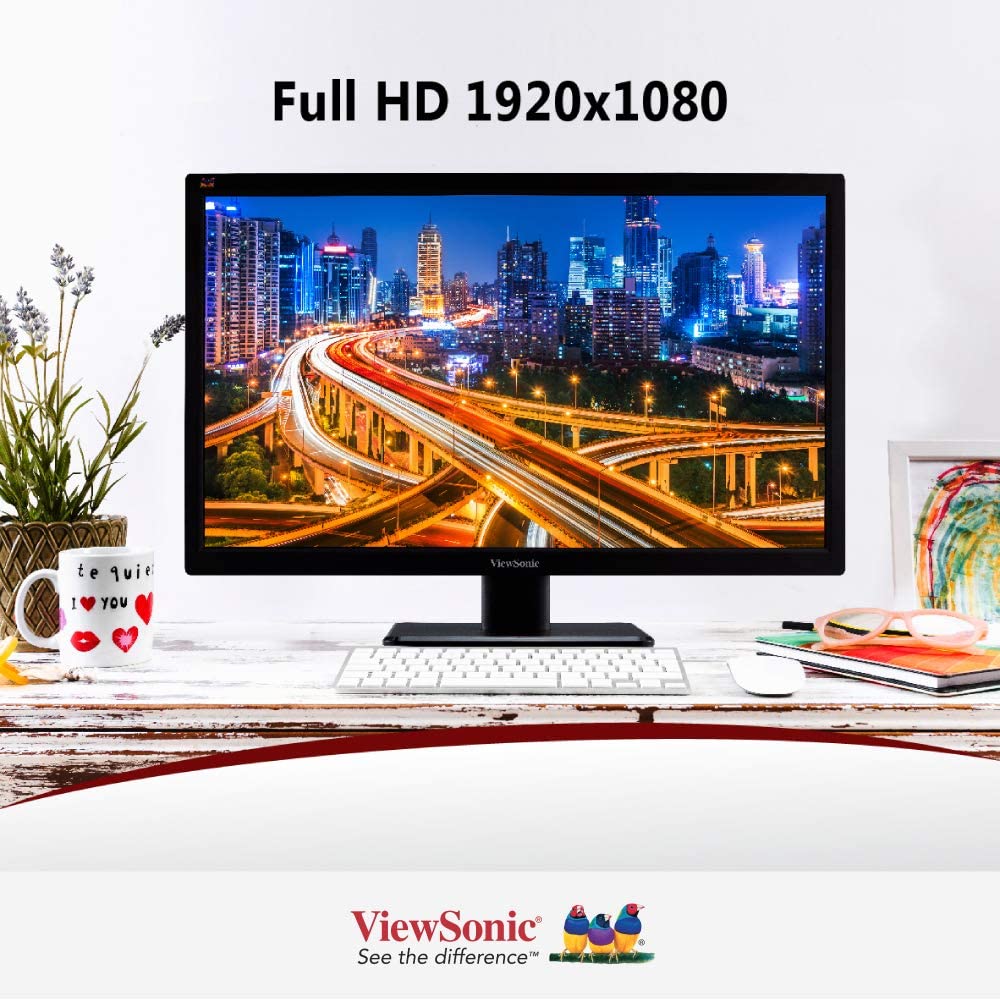

22” 1080p Home and Office Monitor
- HDMI and VGA input
- Flicker-Free and Blue Light Filter
- VESA mountable
- ViewMode technology
- Eco-mode
OVERVIEW
The ViewSonic VA2223-H is a cost-effective 22” Full HD monitor with HDMI and VGA input that is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more detailed content. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. A VESA-compatible mount adapts easily to multi-monitor or wall-mount set ups.
Superior Color Rendering Options
ViewSonic’s unique ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
Comfortable Viewing

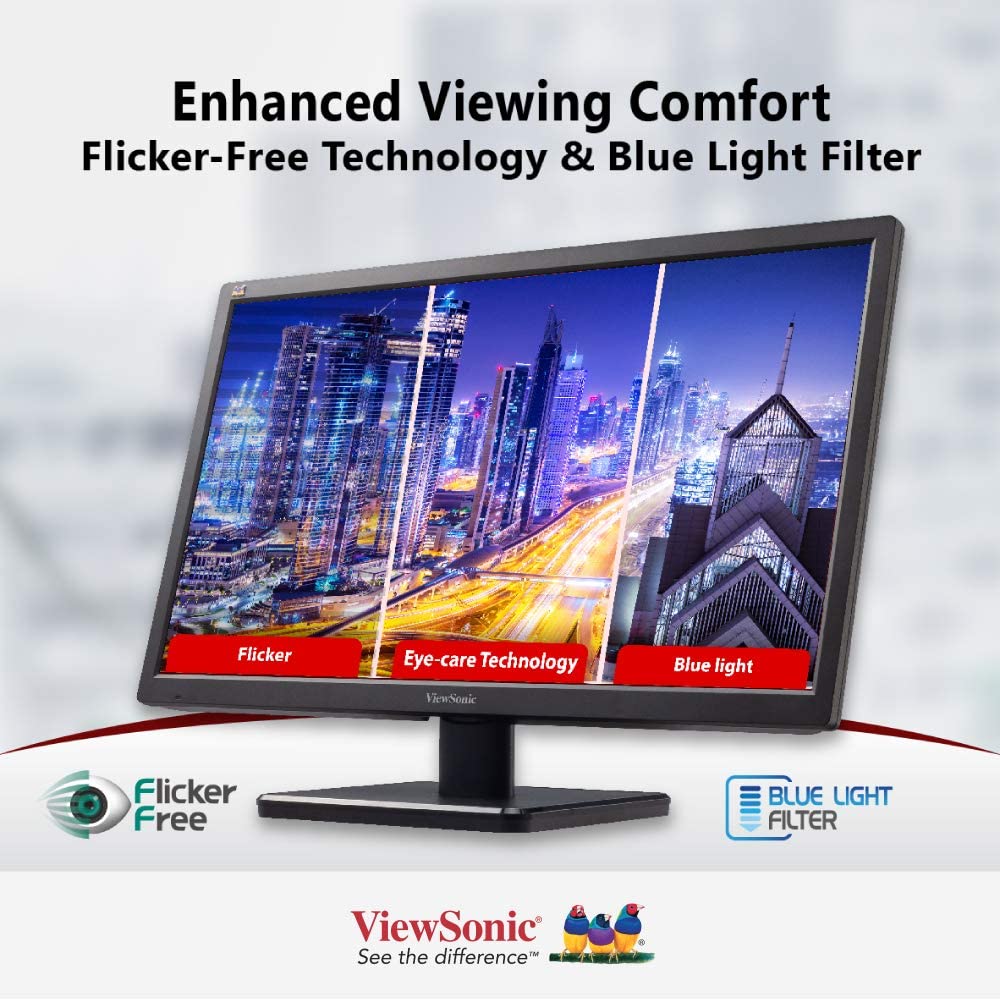

Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Low Energy Consumption
The energy-saving Eco-mode takes energy efficiency into consideration while also offering stunning screen performance.
VESA Mountable
Mount the monitor by using its VESA-compatible mount.

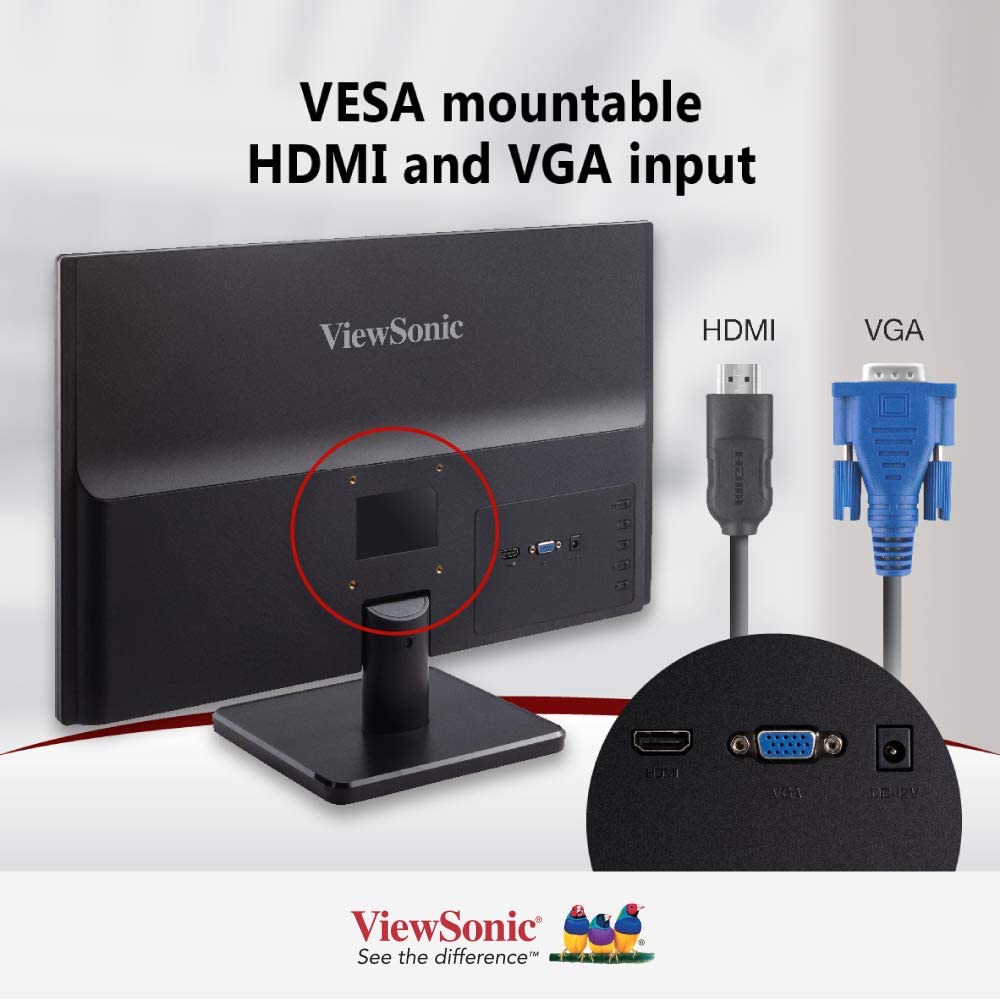

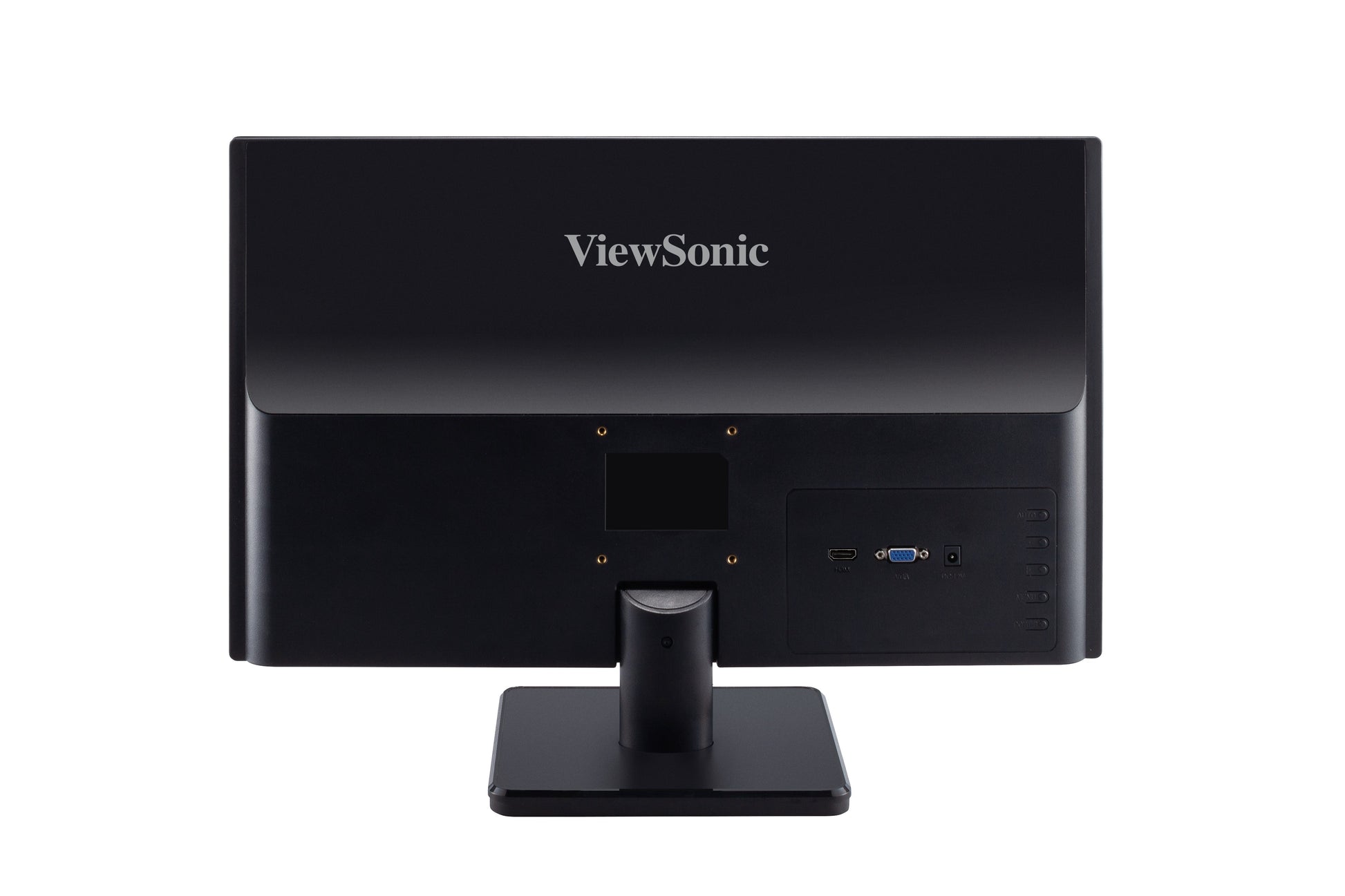

Dimensions & I/O Ports
- VESA Compatible
(Wall Mount 75x75mm) - Menu Control Panel
- AC In
- VGA
- HDMI
SPECIFICATIONS
-
Display

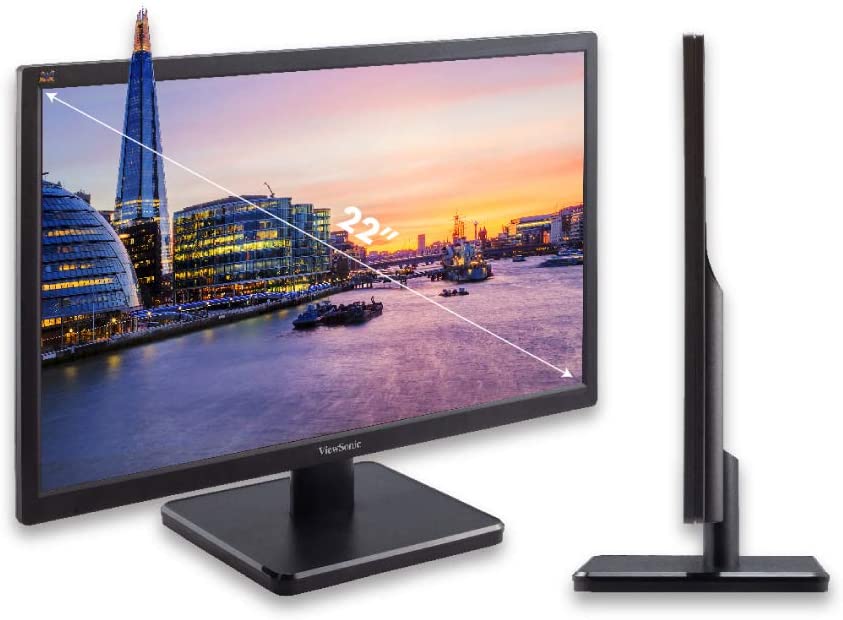

Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 600:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat

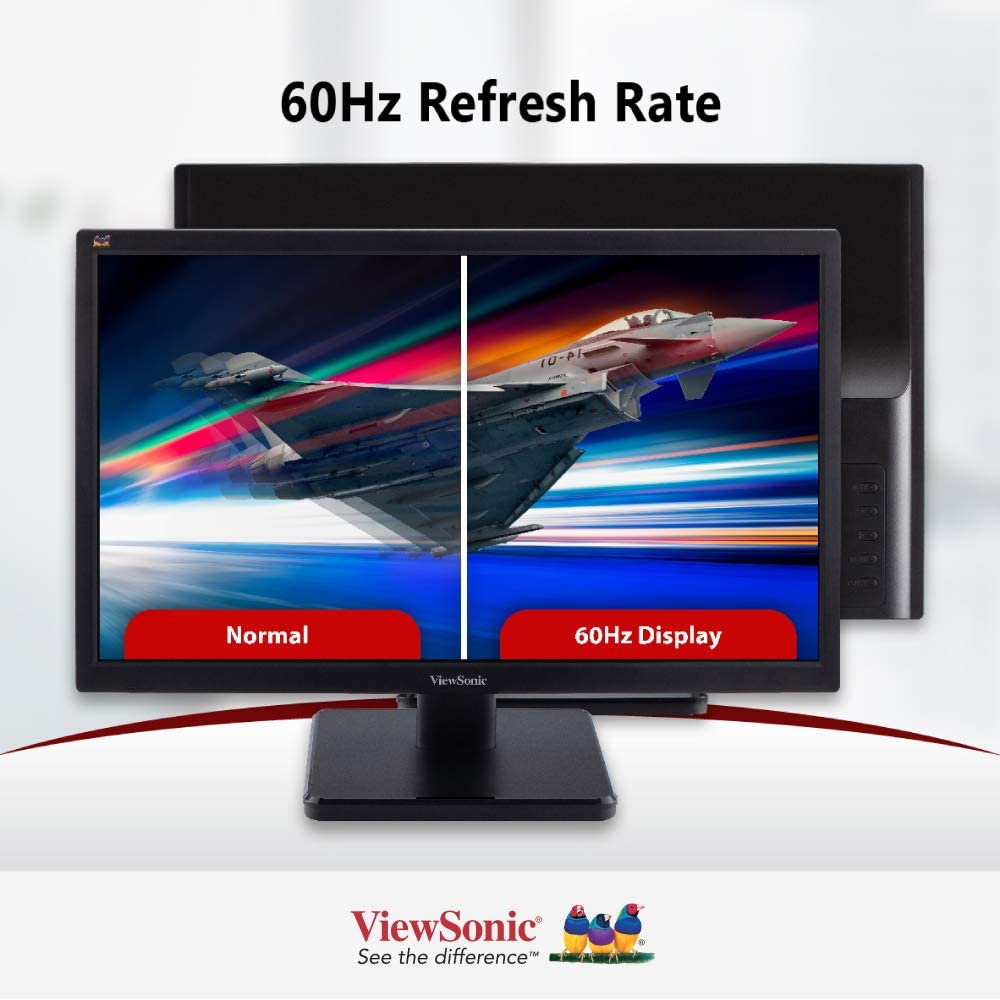

Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes

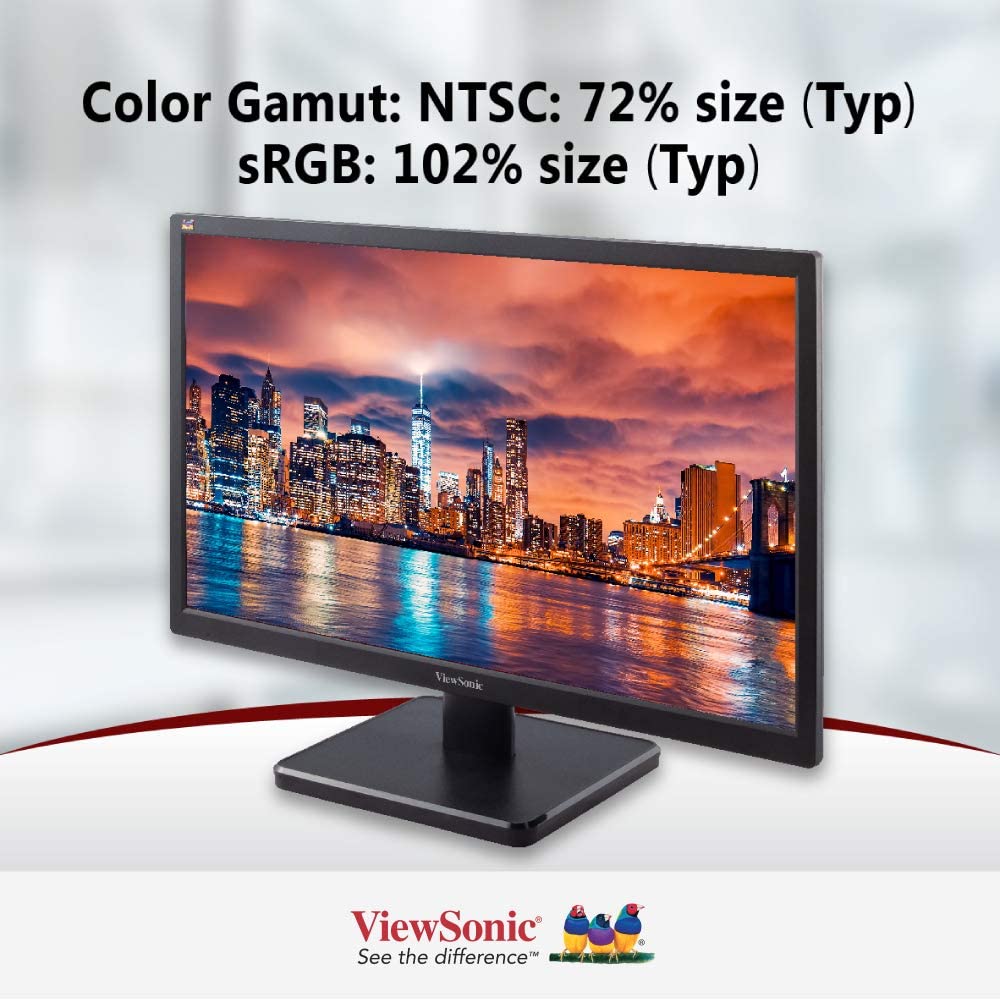

Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
-
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080
-
Connector
VGA: 1
HDMI 1.4: 1
Power in: External power adapter -
Power
Eco Mode (Conserve): 18W
Eco Mode (optimized): 20W
Consumption (typical): 22W
Consumption (max): 24W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.3W
Power Supply: External
-
Controls
Physical Controls: Auto, -, +, Menu, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
-
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
-
Wall Mount
VESA Compatible: 75 x 75 mm
-
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
-
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
-
Ergonomics
Tilt (Forward/Back): -4º / 14º
-
Weight (imperial)
Net (lbs): 4.6
Net Without Stand (lbs): 4
Gross (lbs): 6.6
-
Weight (metric)
Net (kg): 2.1
Net Without Stand (kg): 1.8
Gross (kg): 3
-
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.1 x 14.4 x 4.3
Physical (in.): 20.1 x 14.6 x 7.3
Physical Without Stand (in.): 20.1 x 12.2 x 1
-
Dimensions (metric) (wxhxd)
Packaging (mm): 562 x 365 x 110
Physical (mm): 510 x 370 x 185
Physical Without Stand (mm): 510 x 310 x 25
-
General
Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, PSB, BIS
PACKAGE CONTENTS: VA2223-H x1,HDMI Cable (v1.4; Male-Male), AC/DC Adapter x1, Quick Start Guide x1, Power plug x2
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
