ViewSonic 16”Touch Portable Monitor-TD1655
More Information on Product

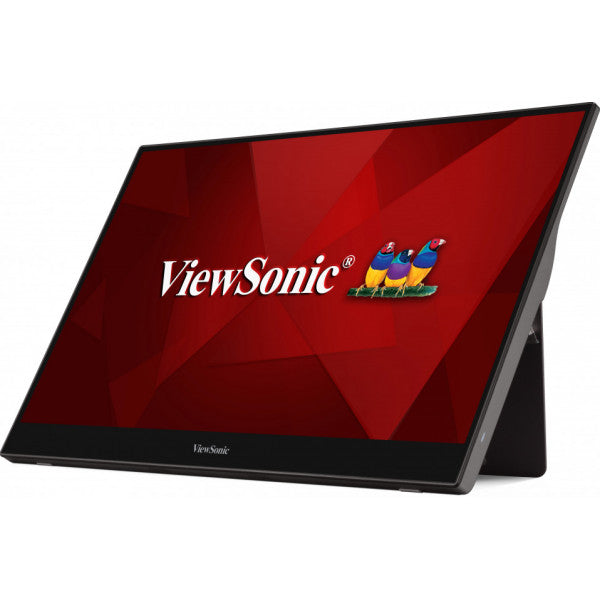

16” Touch Portable Monitor
- Easily extend your content from laptops and mobile devices
- One-cable solution for audiovisual, power, and touch signal transmission
- Flexible display setup – work at any angle
- Compact size, lightweight, and highly portable
- Sturdy and durable design
The ViewSonic TD1655 is a portable 16” Full HD touch monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual, power, and touch signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, metal case, aluminum stand, and 6H hardness screen, reliability is embodied in the design.
Extend Your Content from Mobile Devices
Extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.
*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
Audiovisual Extension while Power ChargingBroadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge (up to 60W) over one cable while powering from an external power bank/outlet over the other USB Type C cable.
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.
2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.

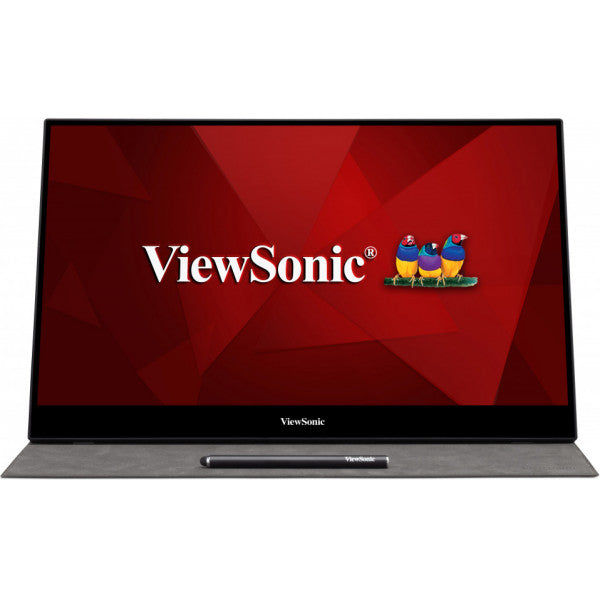

Touch Feedback ControlControl in a large screen with touch gives more intuitive and efficient reactions. The attached magnetic touch pen allows you to draw and write notes without leaving fingerprints.
*One-point touch support for MacOS; does not apply to iOS & iPadOS devices.
Portable Size for Work & FunLarger, 16” display than most common laptops and weighing less than 1 kg. It perfectly outfits your mobile workplace and can be used for multimedia play when taking a break.

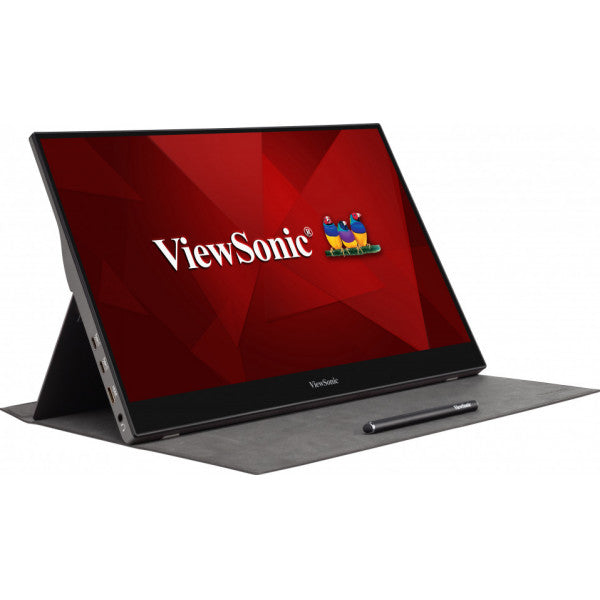

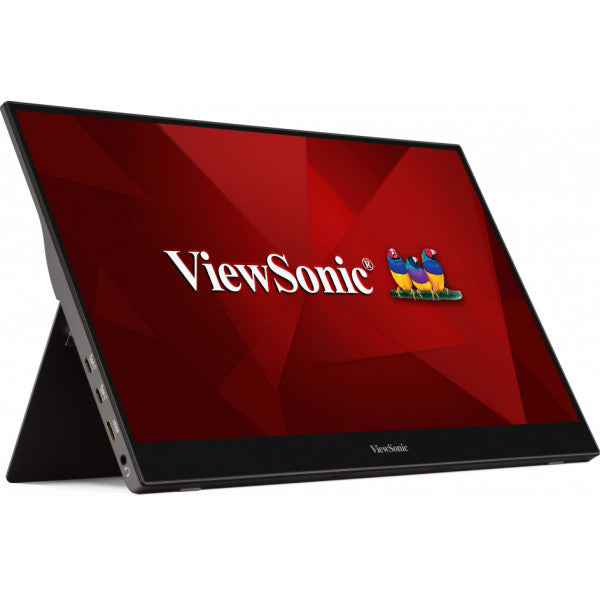

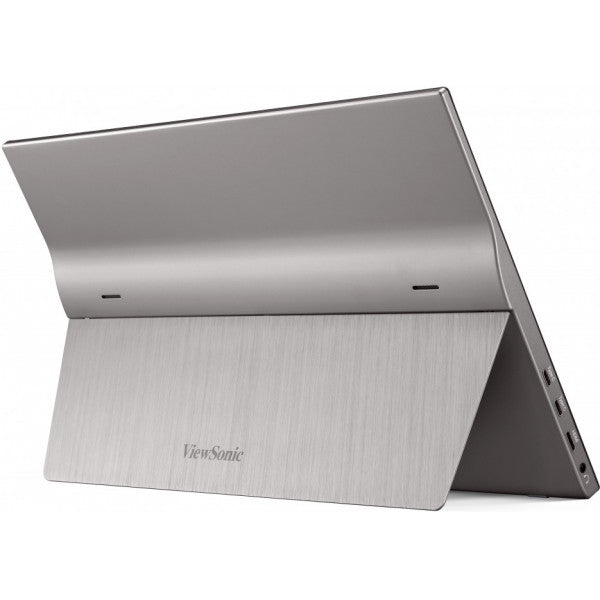

Working in Your Preferred AnglesView in a wide range of angles by adjusting the attached stand.

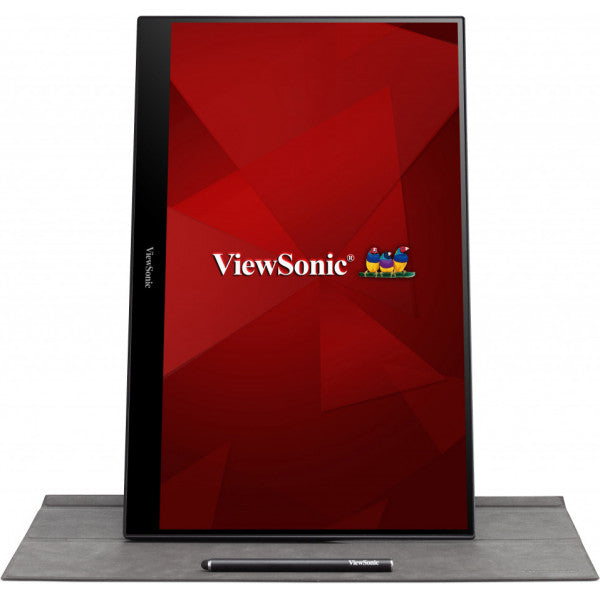

Supports Vertical LayoutBesides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.

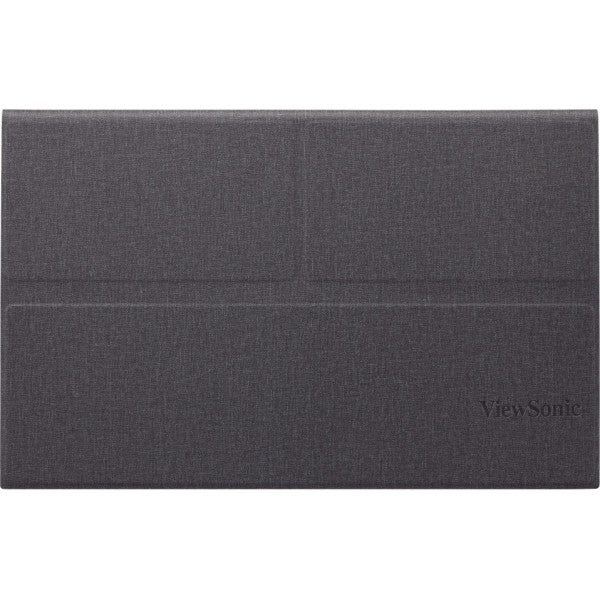

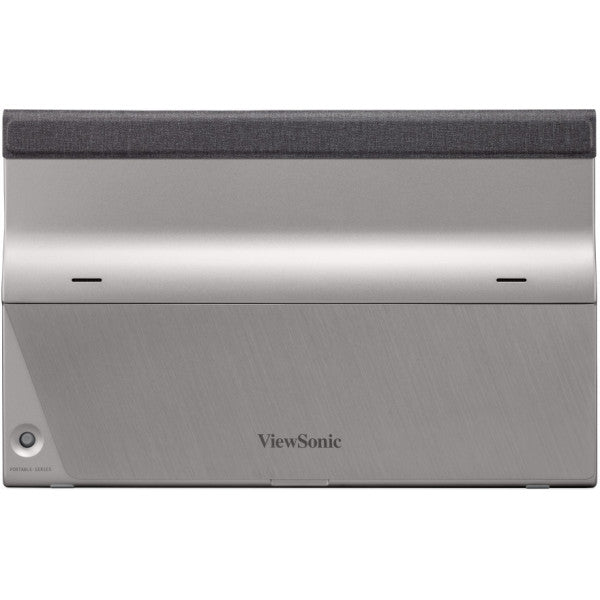

Magnetic Cover and MatAvoid damage during carry, the detachable magnetic cover is easy to put on. Used as a mat, its anti-slip surface prevents the monitor from sliding away.

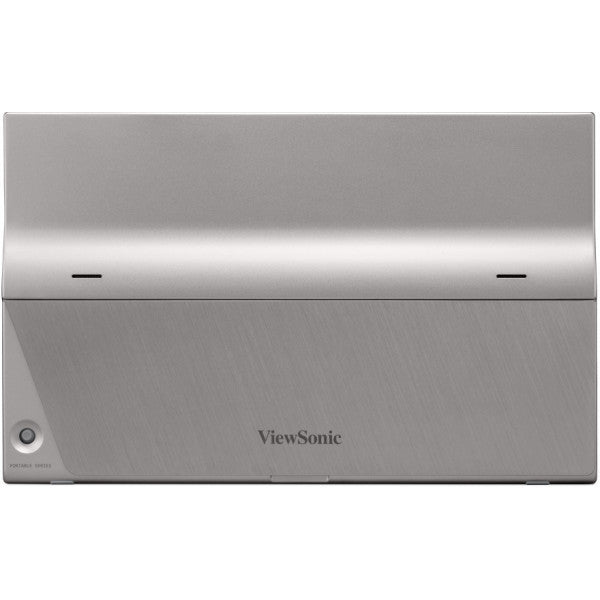

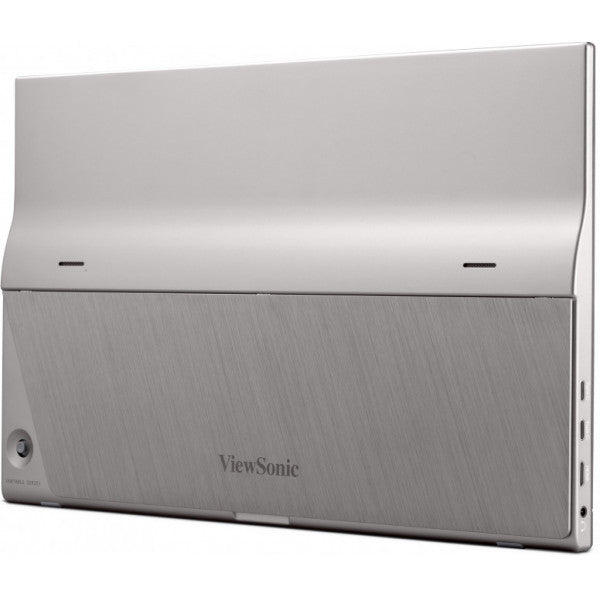

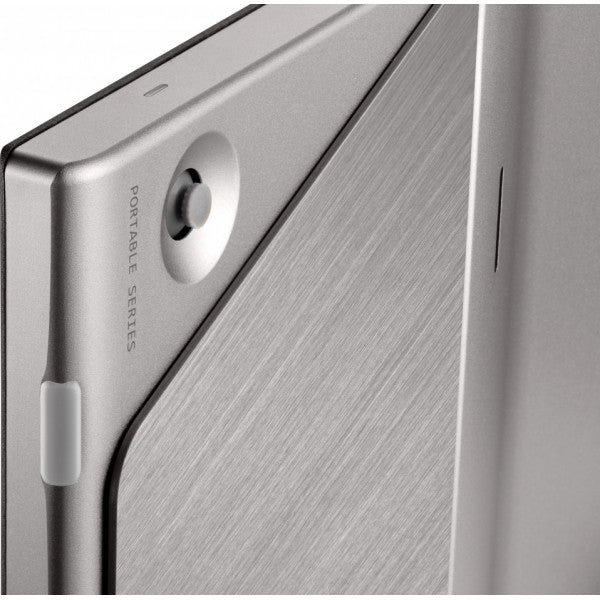

Robust One-piece DesignWith the metal case and endurable hinge, the fold-able aluminum stand makes the whole monitor a one-piece design.
Anti-scratch Touch ScreenBuilt-in 6H hardness screen, it’s resistant to surface damage, even if accidently scratched by your keys.

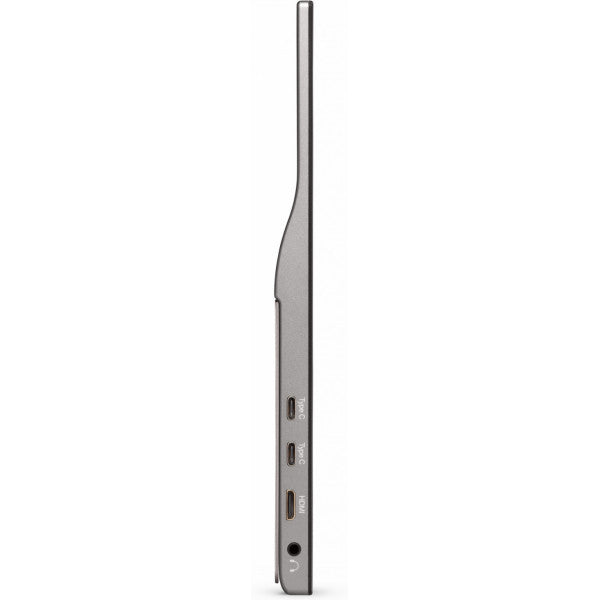

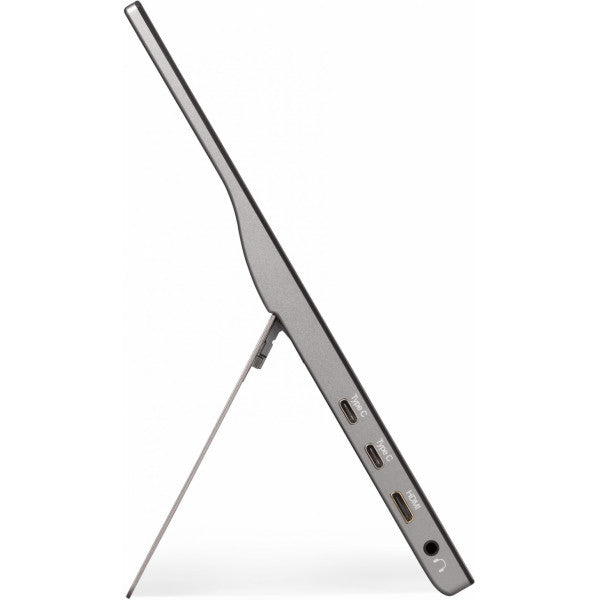

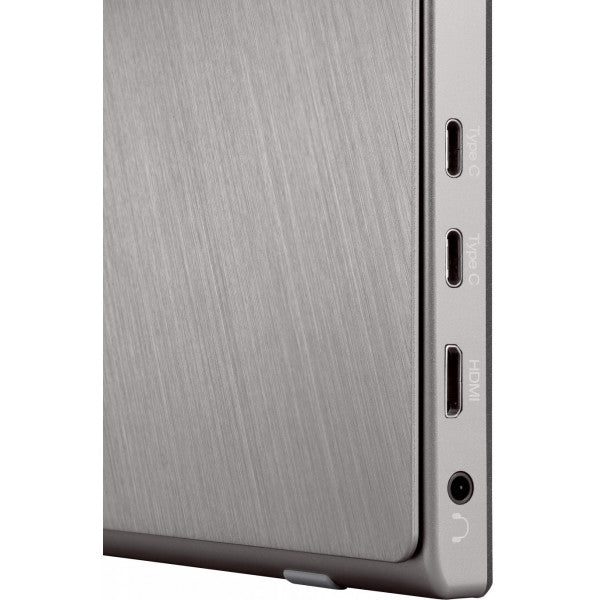

Dimensions & I/O Ports
- USB Type C x2
- Mini HDMI
- Audio Out

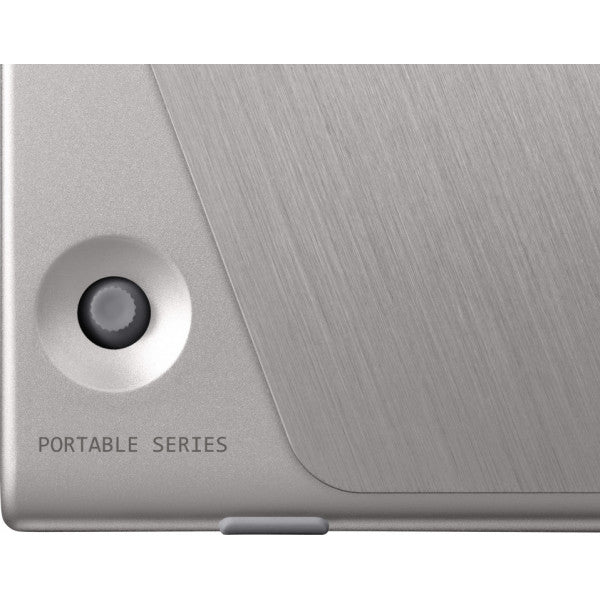

- Joy Key
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.599ms
Response Time (Typical Tr+Tf): 30ms
Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Color Gamut: NTSC: 45% size (Typ), sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
Cover Glass Thickness: 0.8mm
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080
USB 3.1 Type C: 2
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: External power adapter
Internal Speakers: 0.8Watts x2
Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V, 50/60 Hz
Power Supply: External
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Frequency Horizontal: 15 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
Tilt (Forward/Back): 20º / 60º
Net (lbs): 2.1
Net Without Stand (lbs): 2.1
Gross (lbs): 5.1
Net (kg): 1
Net Without Stand (kg): 1
Gross (kg): 2.3
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.3 x 11.3 x 3.5
Physical (in.): 14 x 8.8 x 0.6
Physical Without Stand (in.): 14 x 8.8 x 0.6
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 440 x 288 x 89
Physical (mm): 355 x 223 x 16
Physical Without Stand (mm): 355 x 223 x 16
Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI
PACKAGE CONTENTS: TD1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1, Passive touch pen x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
