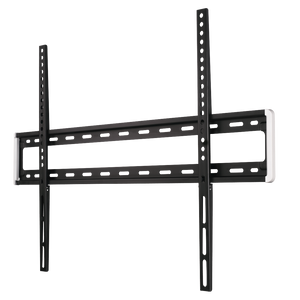

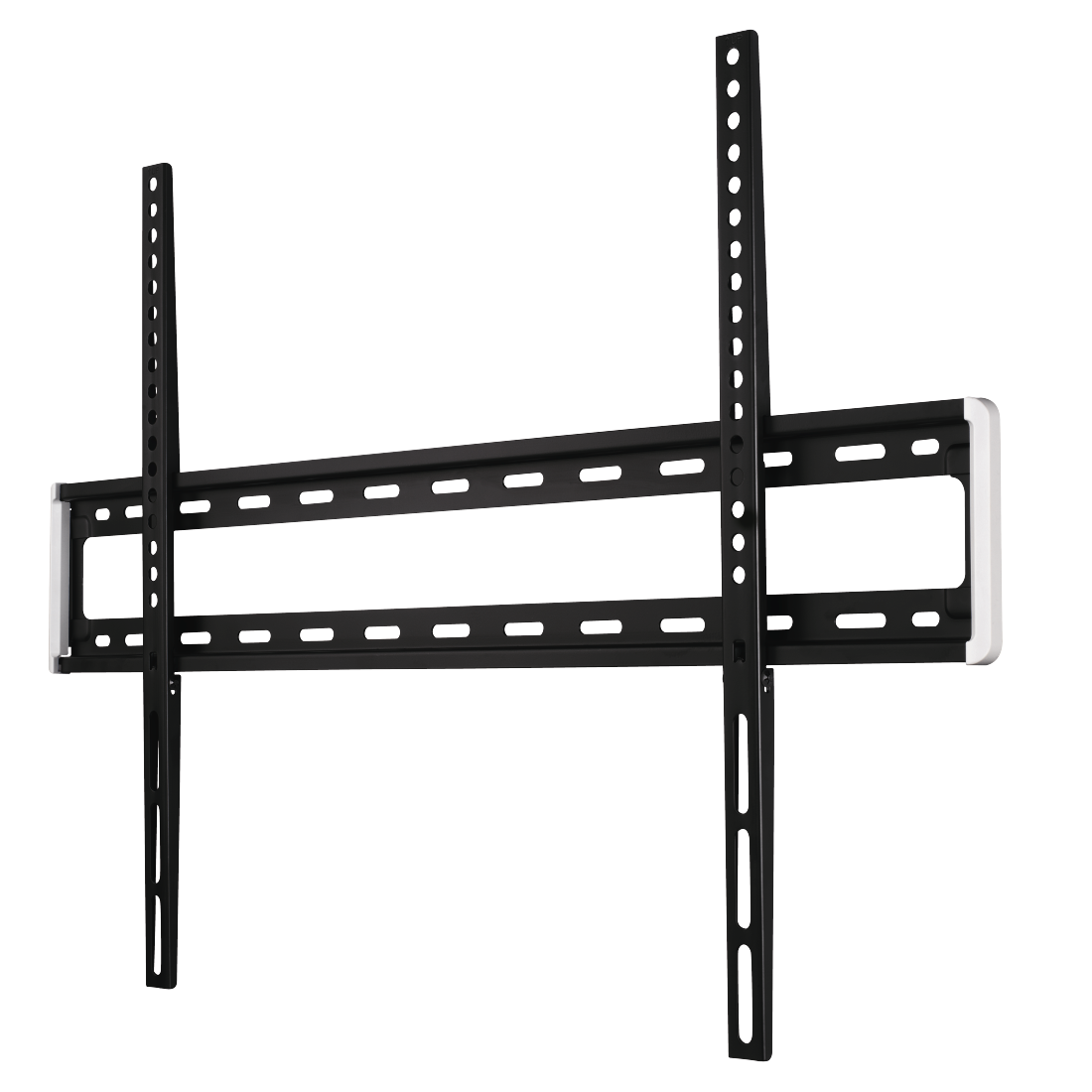

Hama 118624 FIX TV Wall Bracket, 5 Stars, 229 cm (90"), black

  • 18.760 OMR
    Unit price per
Shipping calculated at checkout.

Only 20 left!

More product information

  • Unobtrusive mount makes the bracket disappear inconspicuously behind the television

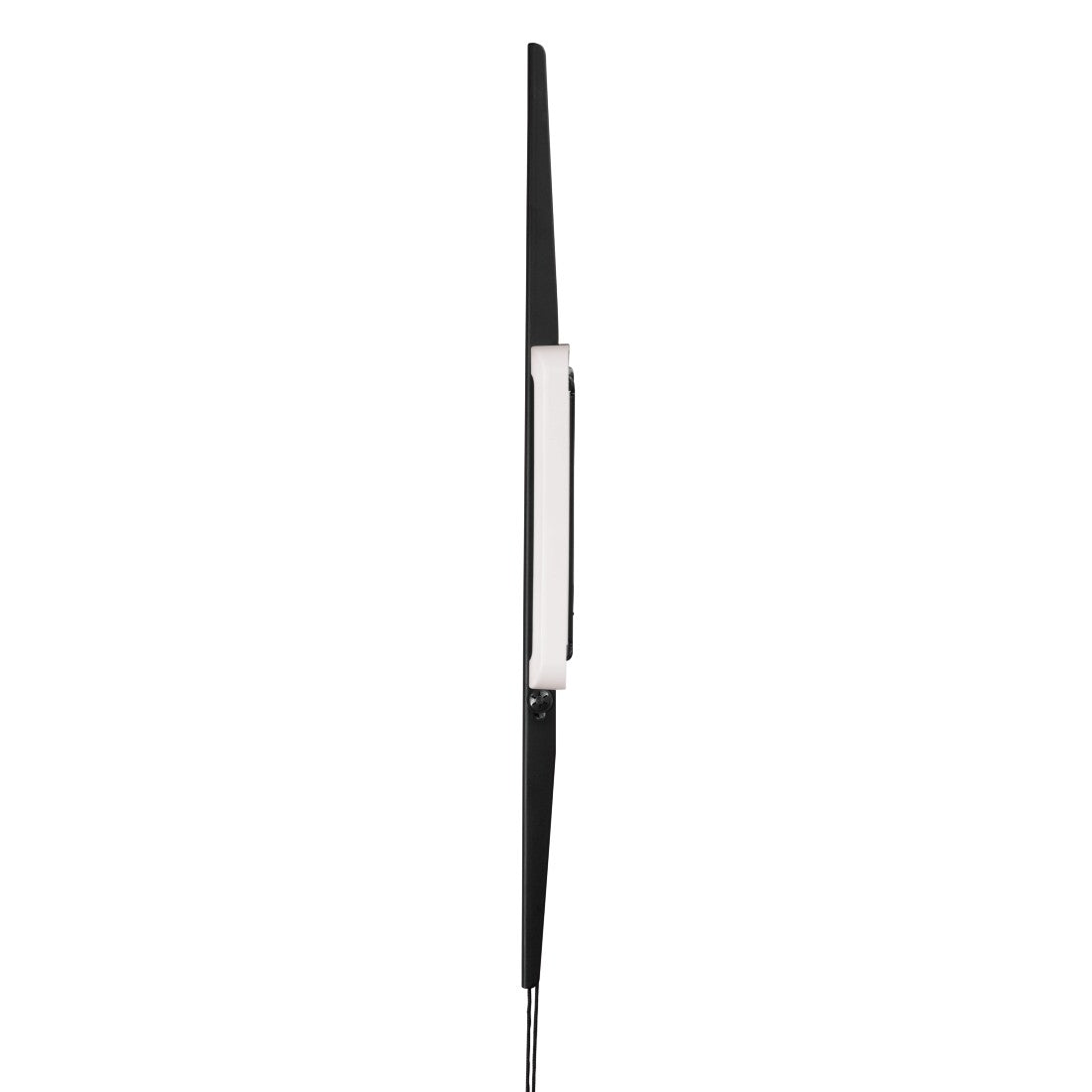

  • Extremely flat profile allows modern and compact living space design
  • Cable manager provides organisation and necessary strain relief
  • The drilling template means easy marking of the drill holes without having to hold the bracket up against the wall
  • Vibration dampers for the ultimate sound experience
  • For the installation of flat screen TVs with a screen size from 117 to 229 cm (46" to 90")
  • Exceptionally convenient and space-saving for optimal positioning of the flat screen in every room
  • Supports all VESA standards up to 800 x 600
  • 10-year warranty

What's in the Box

  • 1 FIX TV wall bracket

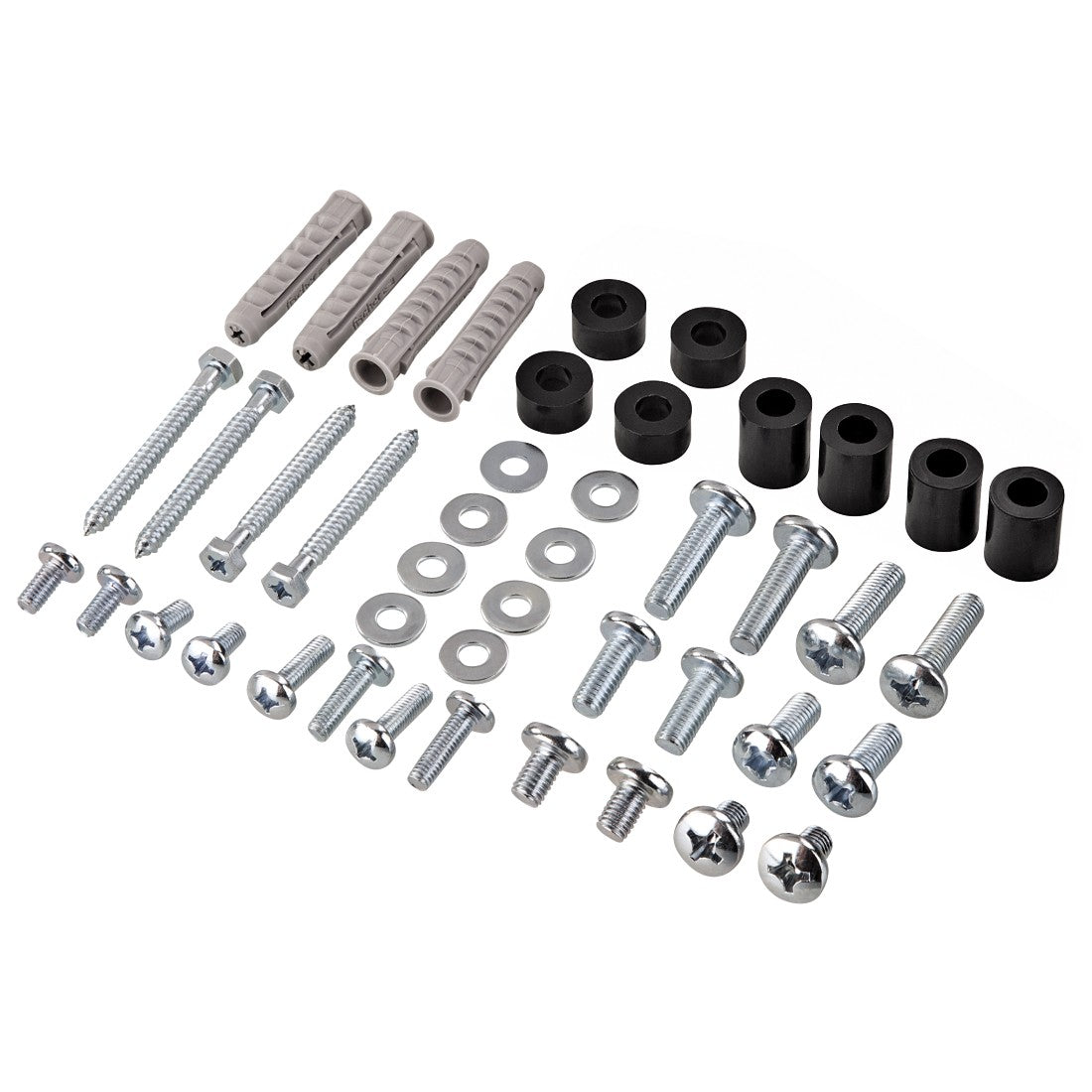

  • 1 screw set incl. Fischer plugs
  • 1 spirit level
  • 1 drilling template
  • 1 pencil
  • Cable tie
  • 1 installation guide

Note for Consumers

If you want to install your TV set very close to the wall, this TV wall bracket is exactly the right bracket for your needs. If however you want more distance from the wall, simply use the spacer included.

In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.

The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please source suitable dowels and screws from a specialist retailer.

Design (Colour, Pattern, Motif, Series)

Colour Black
Product Division HiFi, TV & Home Cinema
Shade of colour Black

Quality

Quality 5 Stars

Physical Properties

Additional Functions Cablemanager
Hole Size Attachment Up to M8
Material Steel Plate
Maximum Load Capacity 75 kg
Model TV
Number of Joints 0

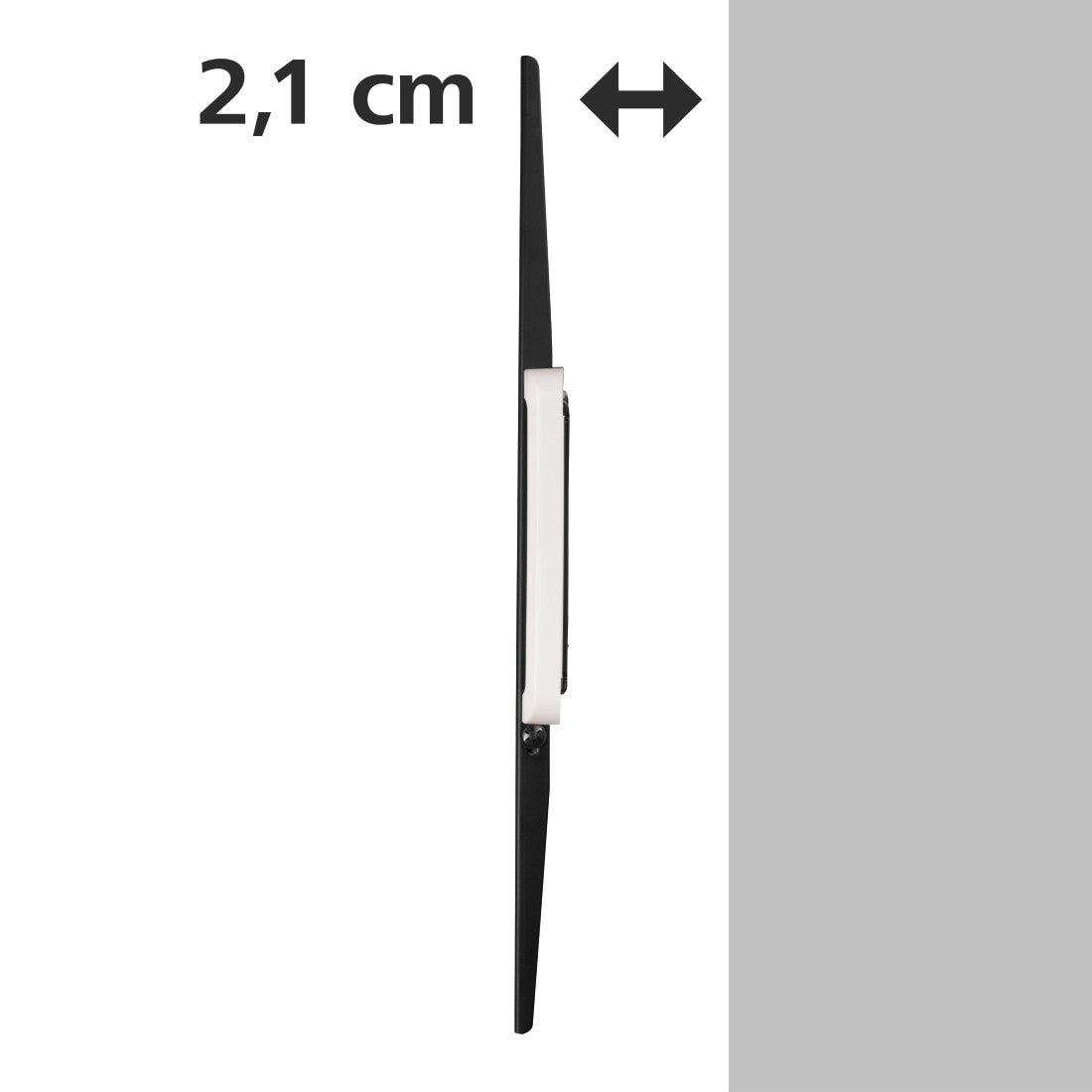

Projection maximum 2.1 cm
Projection minimum 2.1 cm
Rotation 0 °
Special Feature Drilling template/Spirit level integrated
Swivel Range 0 °
Tilt +/- 0 / 0 °

Size & Weight

External Dimension (Height) 63 cm
External Dimension (Width) 91.3 cm
Mounting Plate (Length) 91.3 cm
Mounting Plate (Width) 15.2 cm
Screen Dimensions 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 191 cm (75"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 213 cm (84"), 216 cm (85"), 228,6 cm (90")
VESA (from-to) 100x100 - 800x600
VESA Standard 100 x 100, 200 x 100, 200 x 200, 200 x 300, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 800 x 200, 800 x 400, 800 x 500, 800 x 600

Field of Application

Recommended Maximum Screen Size 228,6 cm (90")
Recommended Minimum Screen Size 117 cm (46")
Recommended Screen Size 117 - 229 cm (46" - 90")
Suitable for TV
Version Fix
